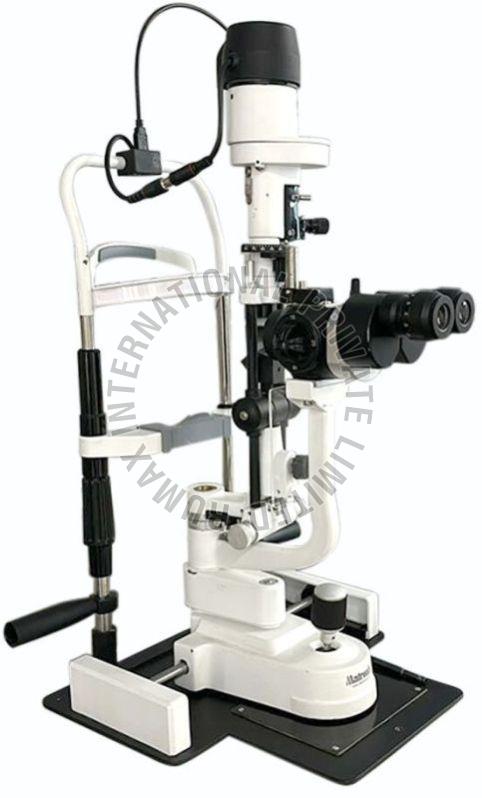

Slit Lamp

Features:

• Traditional slit lamp with Keeler optics
• Traditional tower LED illumination
• 3 step magnification system (x10, x16, and x25)
• 8° converging eye pieces: 49 to 77mm
• Slit Width - 0 to 12mm continuously variable
• Slit Length - 0.2, 2, 3, 5, 9 and 12mm circle (1.8 to 12mm continuously variable), and 1mm square
• Filters: neutral density, red-free, diffuser, cobalt blue, yellow, and IR heat-absorbing filter permanently installed
• 0 to 180 degree continuous slit angle



Available in 3 configurations;

• Digital
• Digital Ready
• Standard

3 Step or 5 Step

Choose between our three or a five step drum change magnification systems.

Both use the same top quality optics you would expect from Keeler ensuring only a difference in magnifications, not quality.

3 step system gives you 10x, 16x and 25x
5 step system gives you 6x, 10x, 16x, 25x & 40x

Standard version Features

• Keeler optics
• British built
• Stylish and contemporary design
• Converging or parallel binoculars
• 5 step or 3 step magnification systems (X 6 to x 40 or X 10 to X 25)
• Blue, red-free, clear, neutral density and diffuser filters
• 360 degree continuous slit rotation
• Slit offset / decoupling
• Integrated yellow barrier filter
• 1m Square aperture for Uveitis assessment
• LED illumination
• Illumination control mounted next to joystick
• 3 year warranty



The digital version features a discrete integrated camera and beam splitter and has the key camera controls on the Slit Lamp base to simplify image acquisition. A fibre optic background illuminator and swing in/out diffuser gives additional image control.

Digital version Features

• Feature and function rich Kapture Lite Video software
• Trigger function on joystick
• Camera exposure controls on Slit Lamp base
• LED fibre optic background illumination system
• USB 2 Camera and beam splitter system
• USB hub integrated in Slit Lamp base
• LED illumination
• Illumination control mounted next to joystick
• 3 year warranty

Product Specification Model Name/Number KSL-H3-DR Eye Piece 12.5x Fixation Red LED Lamp Tilting Illumination H-type tower illumination Brand Keeler Step Drum Tower Illumination 3 Step Drum (10x, 16x, 25x)

Model Name/Number KSL-H3- D Brand Keeler Eye Piece 12.5x Fixation Red LED Lamp Software 3 Megapixel 2056 x 1542 USB 3 Camera Kapture Software Step Drum Tower Illumination 3 Step Drum (10x,16x,25x)

Product Specification



Types
Zeiss Style


Magnification
x10, x16, x25


Color
White


Fixation
Red LED


Dioptre Adjustment
-7D +7D


Filer
Head Absorption,Grey,Redfree,Cobalt Blue


Minimum Order Quantity
1





Product Description

Being a customer focused business name; we are readily immersed in shipping an inclusive consignment of Slit Lamp. The presented products are developed beneath the command of diligent personnel making use of optimum-class material along with modern equipment. As well, our products are reviewed thoroughly prior its dispatch at the premises of our clients.

Features:



High finish




Reliable


Effective


Specification:

Binocular Microscope
Zesis Type Slit Lamps
Eye Pieces : 10x, 16x, 25x Objectives : 1 x and 1.6 x
Illumination Section : Slit width adjustment 0 to 12 mm with out step.
Slit image rotation 0 to 180 deg diameter of Diaphramme disc : 12mm, 7mm, 5mm, 3mm 1mm, 0.2mm.
Filter Discs : Cobalt filter, Green filter, yellow filter neutral density and heat absorbing.
Light Source : 12V, 30Watt Halogen Lamp.

Features:

• Long service
• lifeLow maintenance
• Seamless finish



Specification:

• Eyepieces 12.5x
• objective lx, 1.6x
• Total Magnification 10x, 16x, and 25x
• Slit image rotation 0 to 180 degree Filter Disc. Cobalt Filter,
• Automatically identify the type of lenses & switch to the respective measurement mode.
• Green Filter, Yellow Filter, Natural density and open aperture Slit Diaphragm Disc Six apertures of 12, 9, 7, 3, and 0.2 mm and
• a wedge shaped Diaphragm fo infinitely variable slit lengths Halogen Lamp 12 Volt 4.5 Amp



Product Specification



Eye Piece
12.5x


Magnification
x10, x16


Illumination Bulb
12V / 50W Hal,12V / 50W Halogen,12V / 50W Halogen bulb


Fixation
Red LED


Microscope Type
-7D +7D,Paralled Galiean


Dioptre Adjustment
-7D +7D


Filter
Head Absorption,Grey,Redfree,Cobalt Blue


Light Spot Diameter
Phi 8.7,Phi 14,Phi 23


Types
Zeiss Style


Total Magnification
10x,16x


Minimum Order Quantity
1





Product Description


Being a customer focused business name; we are readily immersed in shipping an inclusive consignment of Slit Lamp. The presented products are developed beneath the command of diligent personnel making use of optimum-class material along with modern equipment. As well, our products are reviewed thoroughly prior its dispatch at the premises of our clients. Features:
High finish
Reliable
Effective
Specification:
Binocular Microscope
Zesis Type Slit Lamps
Eye Pieces : 10xand 15x, Objectives : 1 x and 1.6 x
Illumination Section : Slit width adjustment 0 to 12 mm with out step.
Slit image rotation 0 to 180 deg diameter of Diaphramme disc : 12mm, 7mm, 5mm, 3mm 1mm, 0.2mm.
Filter Discs : Cobalt filter, Green filter, yellow filter neutral density and heat absorbing.
Light Source : 12V, 30Watt Halogen Lamp.


Additional Information



Item Code
Z-1001
